Desktop 3 LAN Ports Network Appliance with Intel Celeron Processor N3350

■ Desktop Network Appliance

■ Intel® Celeron® Processor N3350 SoC

■ Onboard eMMC 16GB (Optional up to 32GB)

■ Onboard LPDDR4, 2GB

■ Intel® Ethernet Controller I210, GbE x 3 (co-lay with Mini PCIe)

■ 1 x Mini-Card Full Size Slot with SIM Socket

■ Onboard WiFi 802.11 b/g/n 2×2, BT4.1

■ HDMI Connector (Optional)

■ TPM Supported (Optional)

Form Factor	Desktop Network Appliance
processor	Intel® Celeron® Processor N3350 SoC
Chipset	SoC
System Memory	Onboard LPDDR4, 2GB

Ethernet	Intel® Ethernet Controller I210, GbE x 3 (co-lay with Mini PCIe)
Bypass	—–

Graphics Controller	Intel® HD graphics integrated
Connector	(HDMI Connector x1 Optional )

HDD	—–
CF/CFast/mSATA	Onboard eMMC 16GB (Optional up to 32GB) SATA III Port x 1 for SATA DOM Micro SD card Reader x1

PCIe Slot	——
Mini-PCIe Slot	Mini-Card Full Size Slot with SIM Socket x 1 (USB 2.0; PCIe co-lay with LAN 3)
KB Mouse	—–
USB	USB 3.2 Gen 1 x 2

RTC	Internal RTC
Watchdog Timer	1~255 steps by software programmable
Software Button	GPIO programmable push button x 1
TPM	(TPM2.0 9665 Optional)
GPIO	4 bits input, 4bits output
Fan	—–
MTBF (hours)	550,521 Hours
Color	Black

Power Requirement	9~24 V DC Power
Operating Temperature	32°F ~ 122°F (0°C ~ 50°C )
Storage Temperature	-4°F ~ 140°F (-20°C ~ 60°C)
Operating Humidity	110%~80% relative humidity, non-condensing
Storage Humidity	10%~80% @40°C; non-condensing
Vibration	0.5 Grms/ 5 ~ 500Hz / operation 1.5 Grms/ 5 ~ 500Hz / non operation
SHOCK	10 G peak acceleration (11 m sec. duration), operation 20 G peak acceleration (11 m sec. duration), non operation
Dimension (W x D x H)	4.53″ x 4.53″ x 1.73″ (115mm x 115mm x 44mm)

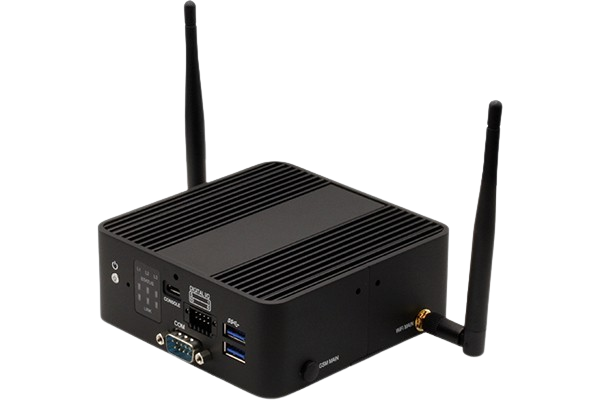

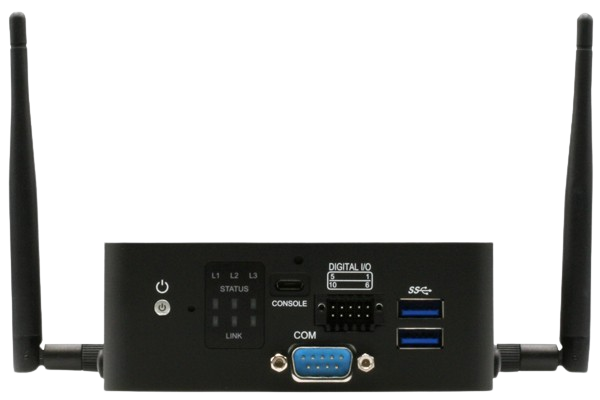

Front Panel	USB 3.2 Gen 1 Ports x 2 LED’s (3 x TOP Row, 2 x Bottom Row)x 6 Power Button with LED integrated x 1 Micro-USB Console Port x 1 RS-232/422/485 x 1 GPIO 8 bits, 4-bits input, 4-bits output Reset button x 1

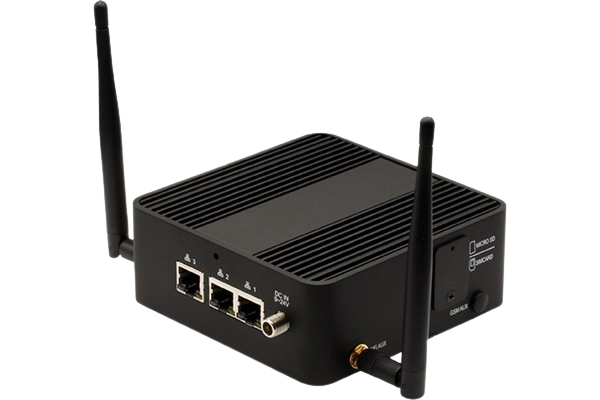

Rear Panel	1GbE RJ45 Ports x 3 Power Input connector, lockable x 1

PART NUMBER	FWS-2275E3-A10-01
CPU	Intel® Celeron® N3350
MEMORY	Onboard LPDDR4 2GB memory
MINI-CARD SLOT	Mini-Card Full Size Slot with SIM Socket x 1 (USB 2.0)
STORAGE	16GB eMMC SATA III Port x 1 for SATA DOM Micro SD card Reader x 1
LAN	Intel® I210-AT, Gigabit Ethernet x 3
USB	USB 3.2 Gen 1 x 2
CONSOLE	Micro USB console x 1
BYPASS	—–
FAN	—–
TPM	—–
DISPLAY	—–
MOUNTING	Desktop
POWER	DC 12V,40W Power Adapter x1
NOTE	* Please contact AAEON for other optional specifications.

Part Number	Description
1702031802	Power Cord for US
1702031803	Power Cord for EU
170203180B	Power Cord, For China, 1.8M
170203180E	Power Cord for Japan
