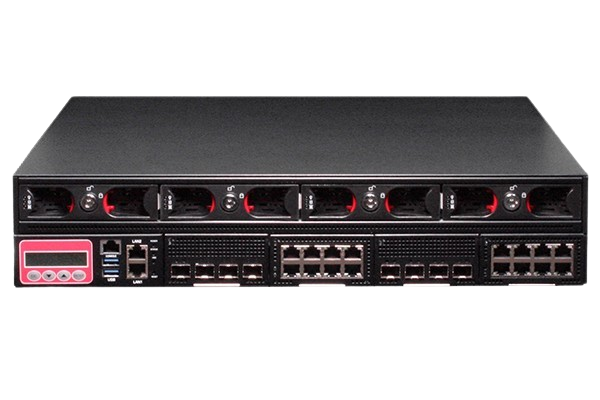

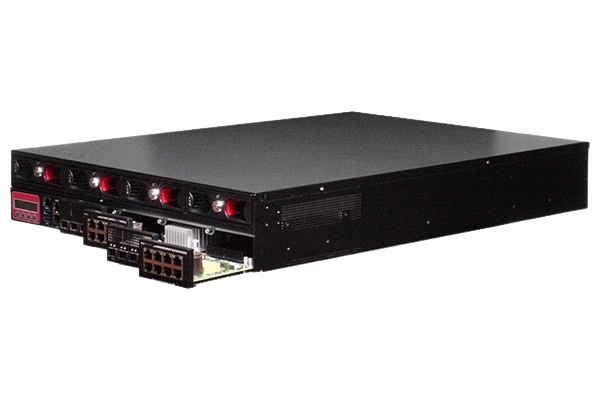

WMK-8610 | 2U Rackmount Network Appliance with Dual 2nd Gen Intel® Xeon® Scalable Processors

■ 2U Rackmount Network Appliance

■ Dual 2nd Gen Intel® Xeon® Scalable Processors

■ Intel® C621 Chipset

■ DDR4 2133/2400/2666 MHz RDIMM x 16, up to 512GB

■ 1GbE RJ45 Intel® i210 x 2, NIM slot x 4 (Project based up to 8 slots)

■ IPMI supported by AAEON Module

■ External Hotswappable 3.5” HDD Bay x 4, Internal 3.5” HDD Bay x 1

■ Mini-Card slot x 1, M.2 2260 M-key x 1

■ RJ-45 Console x 1, USB 3.2 Gen 1 x 2

■ 550W ~ 600W Redundant Power

Form Factor	2U Rackmount Network Platform
processor	Dual 2nd Gen Intel® Xeon® Scalable Processors, up to 56 cores, 112 threads
Chipset	Intel® C621 Chipset
System Memory	DDR4 2133/2400/2666 R-DIMM x 16 (8 DIMM per CPU), Up to 512 GB

Ethernet	Intel® i210 Gigabit Ethernet x 2
Bypass	Depend on NIM module
NIM Slot	NIM x 4 (Project based up to 8 slots)

Graphics Controller	Optional support via Mini-PCIe module or IPMI
Connector	Optional VGA port via module

HDD	SATA III Port x 6 External Hotswappable 3.5″ HDD Bay x 4 Internal 3.5″ HDD Bay x 1, option with 2.5″ HDD Bay x 2
CF/CFast/mSATA	M.2 2260 M-key x 1 mSATA slot x 1 (share same slot with Mini-Card)

PCIe Slot	Optional PCIe [x16] slots x 2, via riser card
Mini-Card	Mini Card slot (full-size) x 1 (PCIe/SATA, USB2.0)
IPMI	Optional IPMI via AAEON Module (Project based)
KB Mouse	—–
USB	USB 3.2 Gen1 x 2 (Optional 2*10 pin USB 3.2 Gen1 x 2 Box Header 2.0mm)

RTC	Internal RTC
Watchdog Timer	1~255 steps by software programmable
Software Button	GPIO programmable push button x 1
TPM	(Optional TPM2.0 9665 on board)
GPIO	(4 bits input, 4 bits output optional)
Fan	5 x Hotswappable FAN
MTBF (hours)	192,691 Hours
Color	Black

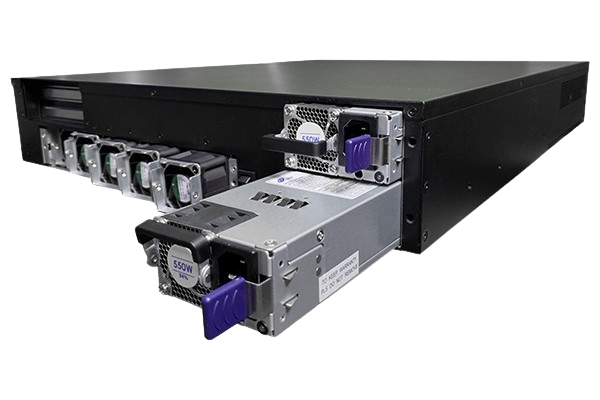

Power Requirement	550 ~ 600W Redundant Power
Operating Temperature	32°F ~ 104°F (0°C ~ 40°C )
Storage Temperature	-4°F ~ 140°F (-20°C ~ 60°C)
Operating Humidity	10%~80% relative humidity, non-condensing
Storage Humidity	10%~80% @40°C; non-condensing
Vibration	00.5 Grms/ 5 ~ 500Hz / operation (3.5” Hard Disk Drive x 5) 1.5 Grms/ 5 ~ 500Hz / non operation
SHOCK	10 G peak acceleration (11 m sec. duration), operation 20 G peak acceleration (11 m sec. duration), non operation
Dimension (W x D x H)	17.48″ x 22.83″ x3.46″ (444mm x 580mm x 88mm)

Front Panel	Power LED x 1 Status LED x 1 HDD Active LED x 1 USB 3.2 Gen 1 Ports x 2 RJ-45 Console x 1 Parallel LCM display and 4 keypad x 1 Software Programmable Button x1 RJ-45 LAN x 2 IPMI x 1 (Project based)
Rear Panel	AC Power Input x 2, Power Switch x 1, VGA port (Optional), Rear Expansion Slot x 2 ( PCIe [x16] Optional)

PART NUMBER	FWS-8600-S2-A11-01
CPU	Intel® 8th Generation Core™/ Xeon® Processors
MEMORY	DDR4 UDIMM x 4 , Up to 128GB
MINI-CARD SLOT	Mini Card x 1
STORAGE	2.5” HDD Bay x 2 + mSATA slot x1
LAN	Intel® I350 AM2 Gigabit Ethernet x 2
USB	USB 3.2 Gen 1 x 2
CONSOLE	RJ-45 console x 1
BYPASS	—–
NIM SLOT	3 (Note 1)
EXPANSION SLOT	1 (Note 2)
TPM	—–
DISPLAY	—–
FAN	2
MOUNTING	1U Rackmount
POWER	ATX

Part Number	Description
M028500000	Slide x 2, Chassis Rail Kit
9761EMPV02	Mini-PCIe VGA module Kit.Full Size.Innodisk EMPV- 1201-C1.w/Packing
1702031803	Power Cord for EU
1702031802	Power Cord for US
170203180E	Power Cord for Japan
PER-T488-A10-00	PER-T488.Riser Card.PCIe[x16] slot x2.Rev.A1.0.for FWS-8600
NIM-S26C-A10-T40-0002	Intel® Fortville XL710 PCI-Express 10G SFP+ 4 Ports Module for FWS-7820/7830/7831
NIM-S26B-A10-F20-0002	Intel® Fortville XL710 PCI-Express 40G QSFP 2 Ports Module for FWS-7820/7830/7831
NIM-S13B-A10-G80-0002	Intel® 82580EB PCI-Express 1G SFP 8 Ports Module for FWS-7820/7830/7831
NIM-S13D-A10-G40-0002	Intel® 82580EB PCI-Express 1G SFP 4 Ports Module for FWS-7820/7821/7830/7831
NIM-C13B-A10-G82-0001	Intel® 82580EB PCI-Express 1G Copper Ethernet 8 Ports Module for FWS-7820 w/ 2 Pair bypass/7830/7831
NIM-C13D-A10-G42-0002	Intel® 82580EB PCI-Express 1G Copper Ethernet 4 Ports Module for FWS-7820 w/ 2 Pair bypass/7830/7831
