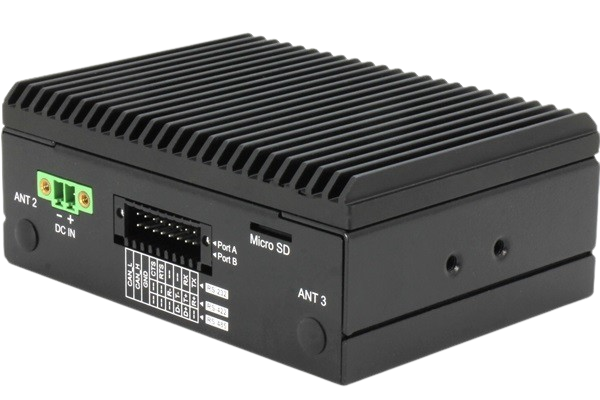

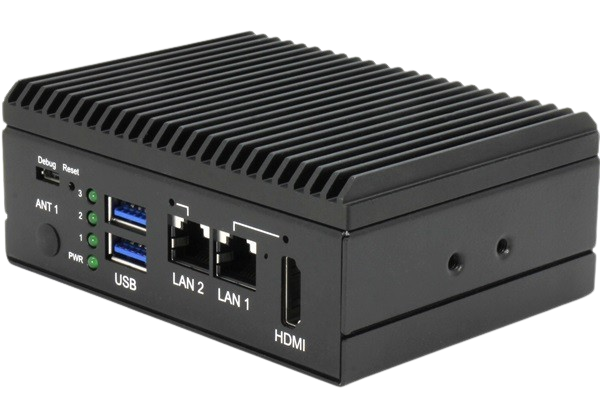

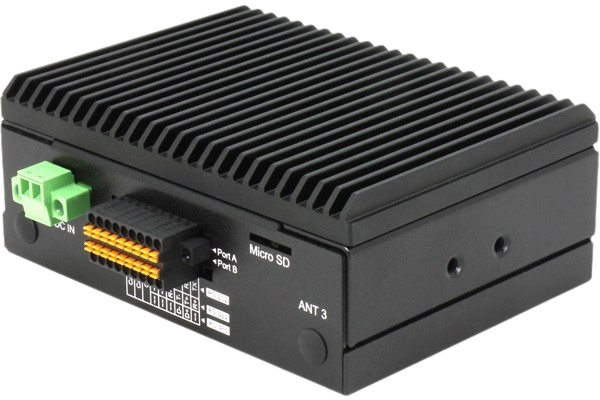

Standard RISC Gateway with ARM i.MX8M Plus Quad-Core Cortex-A53 1.6GHz Processor

■ARM NXP i.MX8M Plus Quad-Core, Cortex-A53 1.6GHz

■ GbE x 2

■ LPDDR4, up to 4 GB, eMMC 5.1 x 1

■ HDMI 2.0 x 1

■ USB 3.0 Gen 1 x 2

■ M.2 2230 E Key x 1, Full-sized minicard x 1

■ COM x 2, CAN x 2, TPM 2.0

processor	ARM NXP i.MX8M Plus Quad-Core Cortex-A53 1.6GHz Processor (Default w/NPU, optional w/o NPU)
Memory	Onboard LPDDR4 up to 4GB (8GB by request)
Storage	eMMC 5.1 16/32GB (Optional 64/128 GB) Micro SD Card slot x 1
Real Time Clock	RTC x 1, with 3V CR2032H Lithium battery
Security	TPM 2.0 (optional)
Indicator	Programmable LED control x 3
Cellular	Full Size Mini Card x 1 (USB signal)
Wireless Lan	M.2 2230 E-key x 1 (USB, PCIe)
Operating System	Debian 11 (Default, GUI is optional) Debian 12 (By request) Android 13 Yocto 4.0
Support Protocol	Modbus, MQTT, OPCUA

Serial Port	RS-232/422/485 switchable x 2, Phoenix Connector
Ethernet	Gigabit Ethernet x 2, RJ-45 support IEEE 1588, TSN, integrated RGMII
Audio	Line Out x 1 (optional)
USB	USB 3.0 Type-A x 2
ADC	—–
DI/DO	—–
Can Bus	CAN-FD x 2 CH, Phoenix Connector
Display	HDMI 2.0 x 1
Power Connector	2 Pin 3.81mm Pitch Phoenix Connector
Debug Port	Micro USB x 1
Expansion Slot	M.2 2230 E-key x 1, support Wifi/BT module Full Size Mini Card x 1, support 4G module, etc) Power control available by software Nano SIM card slot x 1 (for SRG-IMX8PL-A12 only)
Other Interface	—–

Power Requirement	DC 9-36V (Optional: 12V)
Power Consumption	14.8W (Full Loading)
MTBF (hours)	1,699,754 Hours

Dimension	4.25” x 3.12” x 1.69” (108mm x 79.5mm x 43mm)
Weight	1.01 lbs (0.46kg)
Mounting	Wall Mount, Din Rail (Optional)
Operating Temperature	-40 °F ~ 176 °F (-40 °C ~ 80 °C)
Storage Temperature	-40 °F ~ 176 °F (-40 °C ~ 80 °C)
Operating Humidity	0% ~ 90% relative humidity, non-condensing
Certification	CE/FCC Class A

PART NUMBER	SRG-IMX8PL-A10-0001	SRG-IMX8PL-A10-0002	SRG-IMX8PL-A12-0001	SRG-IMX8PL-A12-0002
CPU	ARM NXP i.MX8M Plus Quad-Core Cortex-A53 1.6GHz Processor	ARM NXP i.MX8M Plus Quad-Core Cortex-A53 1.6GHz Processor	ARM NXP i.MX8M Plus Quad-Core Cortex-A53 1.6GHz Processor	ARM NXP i.MX8M Plus Quad-Core Cortex-A53 1.6GHz Processor
NPU	2.3 TOPs	2.3 TOPs	2.3 TOPs	2.3 TOPs
MEMORY	Onboard LPDDR4 2GB	Onboard LPDDR4 4GB	Onboard LPDDR4 2GB	Onboard LPDDR4 4GB
DISPLAY	HDMI x 1	HDMI x 1	HDMI x 1 (rear I/O)	HDMI x 1 (rear I/O)
STORAGE	eMMC 16GB MicroSD x1	eMMC 32GB MicroSD x1	eMMC 16GB MicroSD x1	eMMC 32GB MicroSD x1
LAN	GbE x 2	GbE x 2	GbE x 2	GbE x 2
USB	USB 3.0 Gen1 x 2	USB 3.0 Gen1 x 2	USB 3.0 Gen1 x 2 (rear I/O)	USB 3.0 Gen1 x 2 (rear I/O)
COM	RS232(4-wire)/422/485 x 2	RS232(4-wire)/422/485 x 2	RS232(4-wire)/422/485 x 2	RS232(4-wire)/422/485 x 2
EXPANSION SLOT	M.2 2230 E-key x 1, miniCard (Full) x 1	M.2 2230 E-key x 1, miniCard (Full) x 1	M.2 2230 E-key x 1 miniCard (Full) x 1 Nano SIM card slot x 1	M.2 2230 E-key x 1 miniCard (Full) x 1 Nano SIM card slot x 1
POWER	+12V (Lockable terminal block)	+ 9 ~36 V (Lockable terminal block)	+12V (Lockable terminal block)	+ 9 ~36 V (Lockable terminal block)
OPERATING TEMP	-40°C ~ 80°C	-40°C ~ 80°C	-40°C ~ 80°C	-40°C ~ 80°C
OS	Debian 11	Debian 11	Debian 11	Debian 11

Part Number	Description
9741EG25G0	4G Module & Antenna (for global)
9651882200	M.2 2230 E key Wireless Kit.802.11 ac/a/b/g/n + BT 5.0.2T2R,Enli RTL-8822CE.w/2 sets of cable and antenna
9651276000	M.2 2230 E Key Wireless Kit.802.11a/b/g/n/ac.W/2 sets of antenna and cable.Chipset:NXP 88W8997.Azurewave.CM-276MA-PUR for Android
9651PX8L00	AC/DC Adapter.100V-240V.12VDC.40W.3.34A (for sample order), w/packaging box
1255300611	Power Adapter
170203180J	Power Cord for UK
170X000799	Power Cord (US type)
170X000800	Power Cord (European Type)
170X000806	POWER CORD.3P-125V 7A.1.8M.TWN
170X000803	Power Cord (Japanese Type)
9651IMX804	Wall mount kit. 75x27mm
9651IMX803	DIN rail kit.25mm
