Desktop Network Appliance with Intel Atom® Processor C Series

■ Intel Atom® Processor C Series

■ 10/100/1000Base-TX Ethernet x 6

■ Supports 1 pair bypass (LAN 3 ~ 4)

■ Up to 10G SFP+ Port x 4 (Intel Atom® Processor C3558 SKU only supports 2 ports)

■ DDR4 SODIMM x 2

■ SATA 6Gb/s Port x 2

■ Onboard 16GB eMMC, up to 128GB

■ Mini Card Slot x 1 (Half-size, PCIe), Mini Card Slot x 1 (Full-size, PCIe + USB 2.0) with SIM Slot

■ M.2 3052 B-Key x 1 (USB 3.0) with SIM Slot

■ USB 3.0 (Type-A) x 2 (1 Port only supports USB 2.0 signal)

Form Factor	Desktop Network Appliance
processor	Intel Atom® Processor C Series (4 ~ 16 cores)
Chipset	SoC
System Memory	DDR4 SODIMM ECC x 2, up to 64GB

Ethernet	Intel® I210-AT, Gigabit Ethernet x 6 (2 ports co-lay SFP) 10G SFP+ x 4 (4 cores only support 2 port)
Bypass	Supports 1 pairs on LAN 3-4

Graphics Controller	——
Connector	——

HDD	SATA III port x 2, 2.5” HDD/SSD up to 2
CF/CFast/mSATA	On board 16GB eMMC, up to 128GB optional mSATA slot x 1 (co-lay with M.2 slot)

PCIe Slot	——
Mini-PCIe Slot	Mini-card slot x 1 (Half-size, PCIe) Mini-card slot x 1 (Full-size, PCIe + USB2.0) with SIM slot M.2 B key 3052 x 1 (USB3.0) with SIM slot
KB Mouse	Reserved pin header
USB	USB 3.0 x 2 (1 Port only support USB2.0 signal)

RTC	Internal RTC
Watchdog Timer	1~255 steps by software programmable
Software Button	GPIO programmable push button x 1
TPM	TPM v2.0 9665
GPIO	4 bits input/ 4 bits output
Fan	System Fan x 1
MTBF (hours)	TBD
Color	Black

Power Requirement	12V DC Power in connector 4 Cores: 40W Power Adapter 8 Cores and above: 60W Power Adapter
Operating Temperature	32°F ~ 104°F (0°C ~ 40°C )
Storage Temperature	-4°F ~ 140°F (-20°C ~ 60°C)
Operating Humidity	10%~80% relative humidity, non-condensing
Storage Humidity	10%~80% @40°C; non-condensing
Vibration	0.5 g rms/ 5 ~ 500Hz / operation (2.5” HDD) 1.5 g rms/ 5 ~ 500Hz / non operation
SHOCK	10 G peak acceleration (11 m sec. duration), operation 20 G peak acceleration (11 m sec. duration), non operation
Dimension (W x D x H)	260mm x 178mm x 44mm (W x D x H)

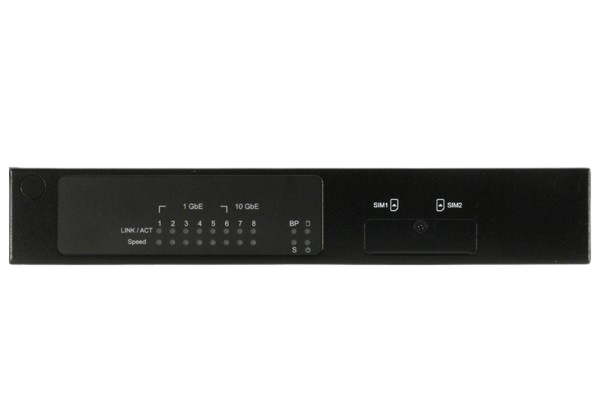

Front Panel	Power LED x 1 Status LED x 1 Storage Active LED x 1 Bypass LED x 1 Ethernet LED x 20 Antenna Hole x 2 Accessible SIM slot x 2

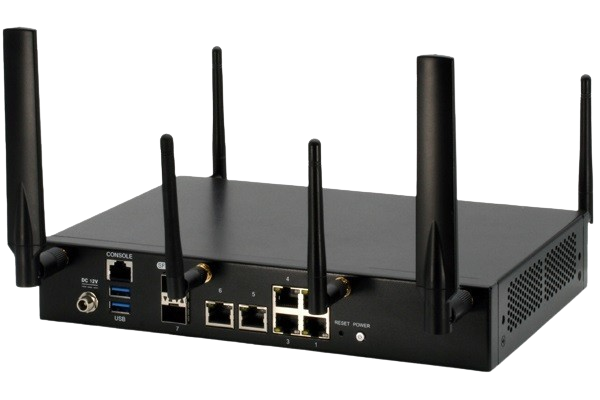

Rear Panel	USB 3.0 Port x 2 RJ-45 Port x 6 SFP+ Port x 2 RJ-45 Console x 1 12V DC Power Input x 1 Software Reset Button x 1 Power Button x 1 Antenna Hole x 4

PART NUMBER	FWS-2365-E8-A10-01
CPU	Intel Atom® C3558
BYPASS	1 pairs (LAN3~4)
EXPANSION SLOT	Mini-card slot x 1 (Half-size, PCIe) Mini-card slot x 1 (Full-size, PCIe + USB2.0) with SIM slot M.2 B key 3052 x 1 (USB3.0) with SIM slot
STORAGE	On board 16GB eMMC SATA III Port x 2 2.5” HDD Bay x 1
LAN	Intel® I210-AT, Gigabit Ethernet x 6 (2 ports co-lay SFP) 10G SFP+ x 4 (4 cores only support 2 port)
USB	USB3.0 TypeA Port x 2 (1 Port only support USB2.0 signal)
CONSOLE	RJ-45 x 1
SYSTEM FAN	1 x System Fan
TPM	TPM v2.0 9665
DISPLAY	——
MOUNTING	Desktop
POWER	DC

Part Number	Description
1702031803	Power Cord for EU
1702031802	Power Cord for US
170203180B	Power Cord, For China, 1.8M
170203180E	Power Cord for Japan
1700091805	Console Cable
